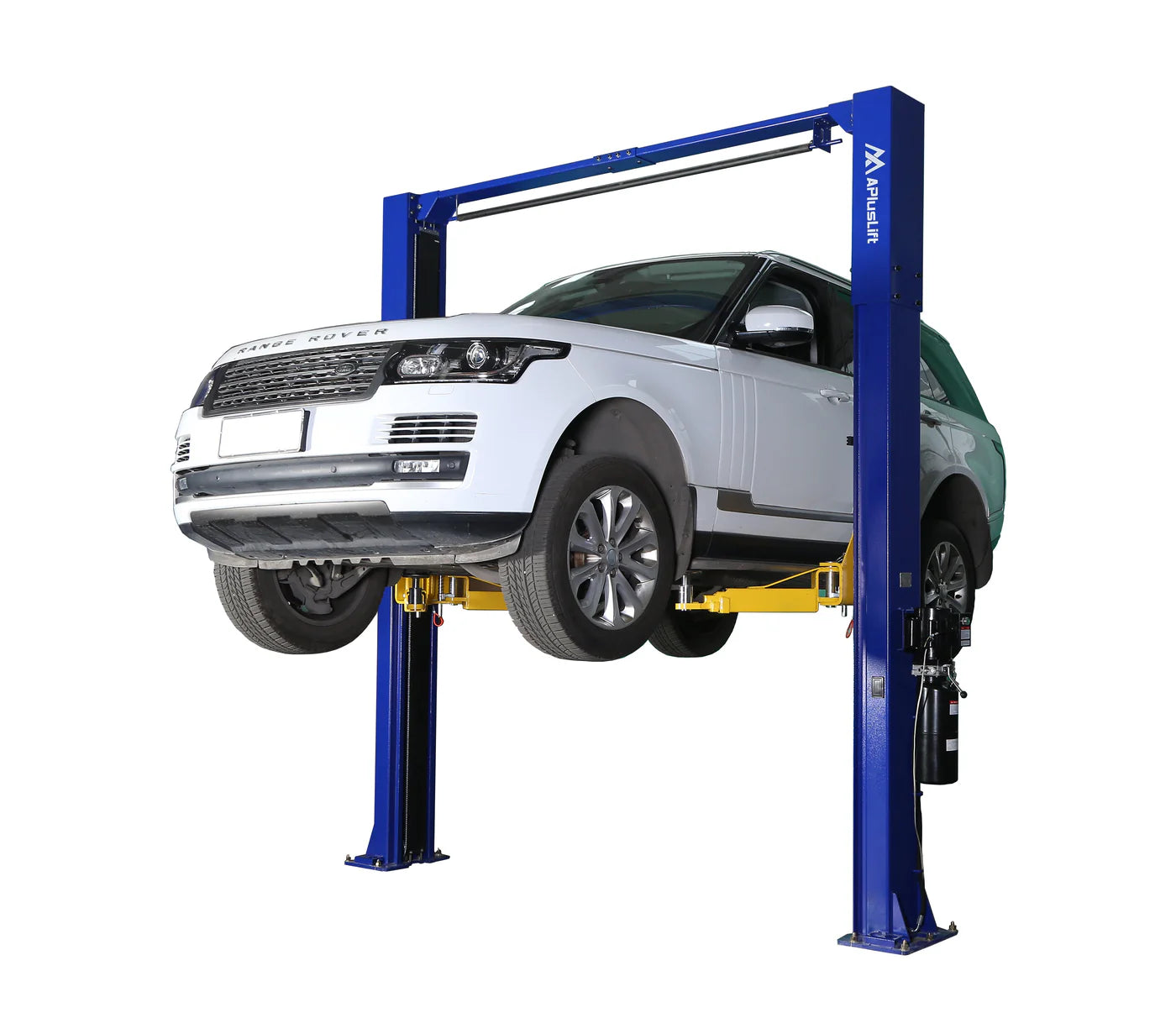

Professional 10,000LB Overhead 2-Post Car Lift

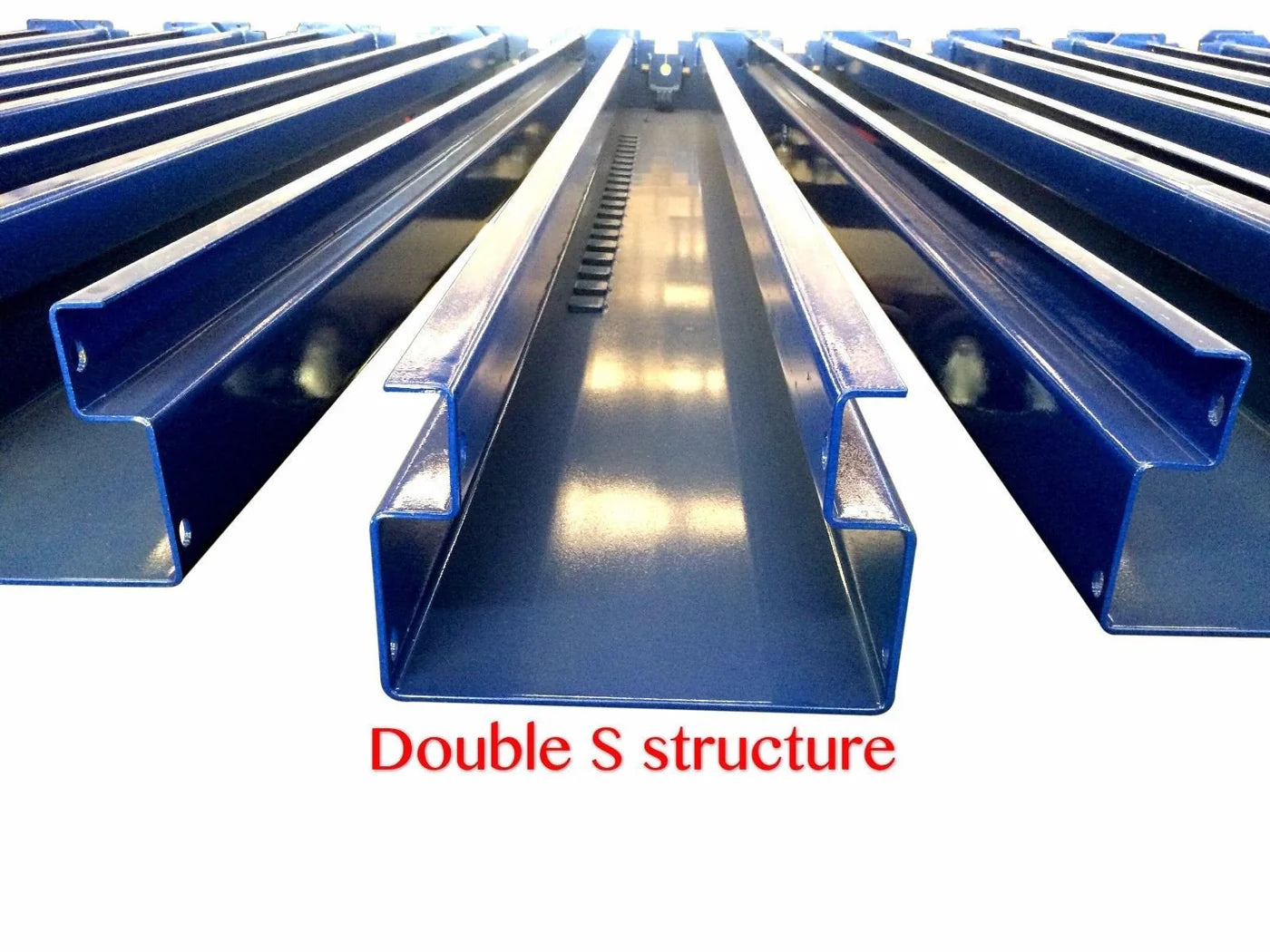

The APlusLift HW-10KOH-A is a heavy-duty overhead 2-post car lift engineered for professional workshops and serious home garages. With a powerful 10,000 LB lifting capacity, dual hydraulic cylinders, and a reinforced double “S” column design, this lift delivers outstanding strength, stability, and long-term reliability.

✅ Key Features

• 10,000 LB Capacity – Ideal for cars, SUVs, and light trucks
• Overhead Design – Clear floor with no base plate obstruction

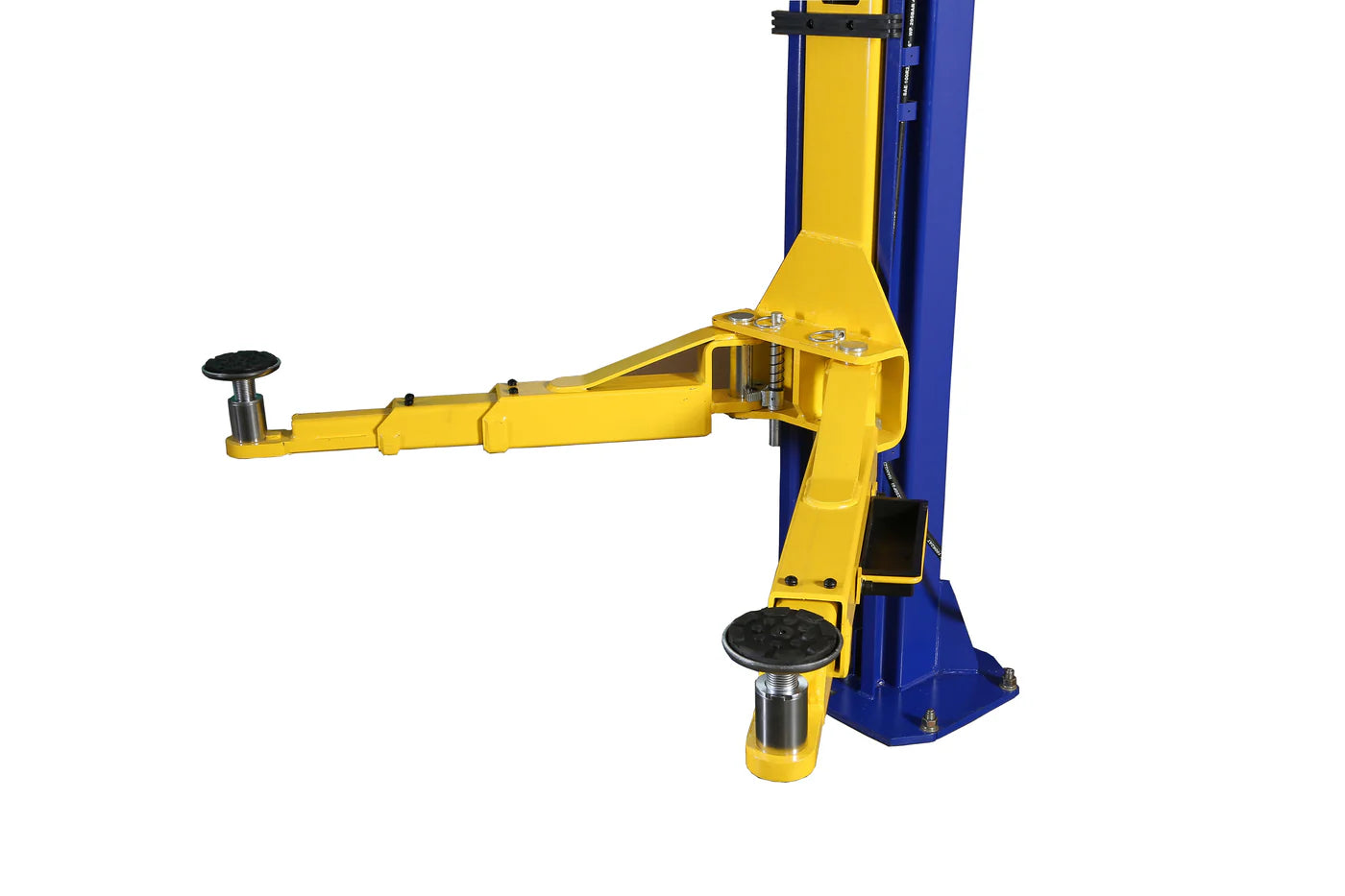

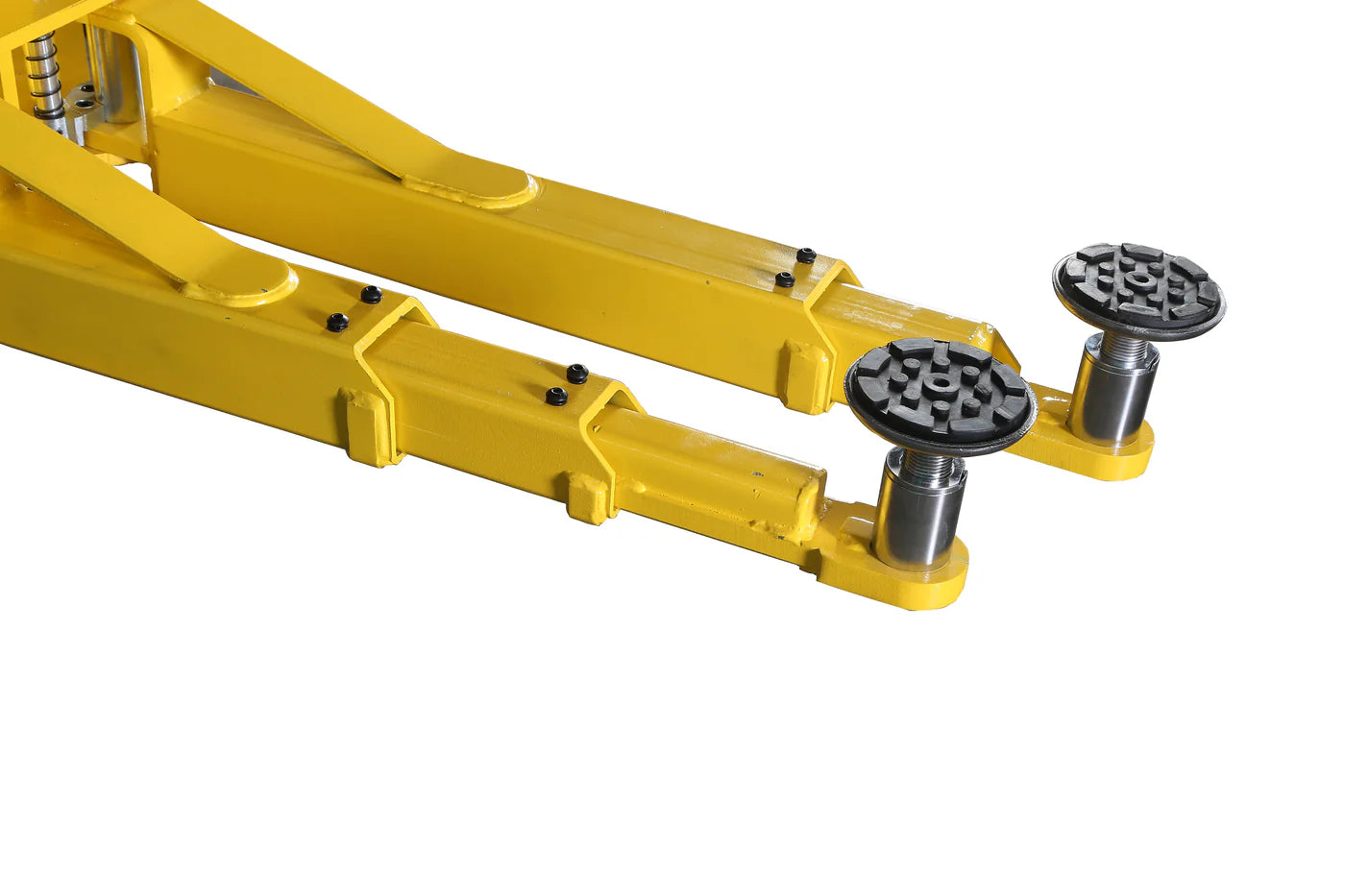

• Combo Arm Assembly – Symmetrical & asymmetrical lifting options

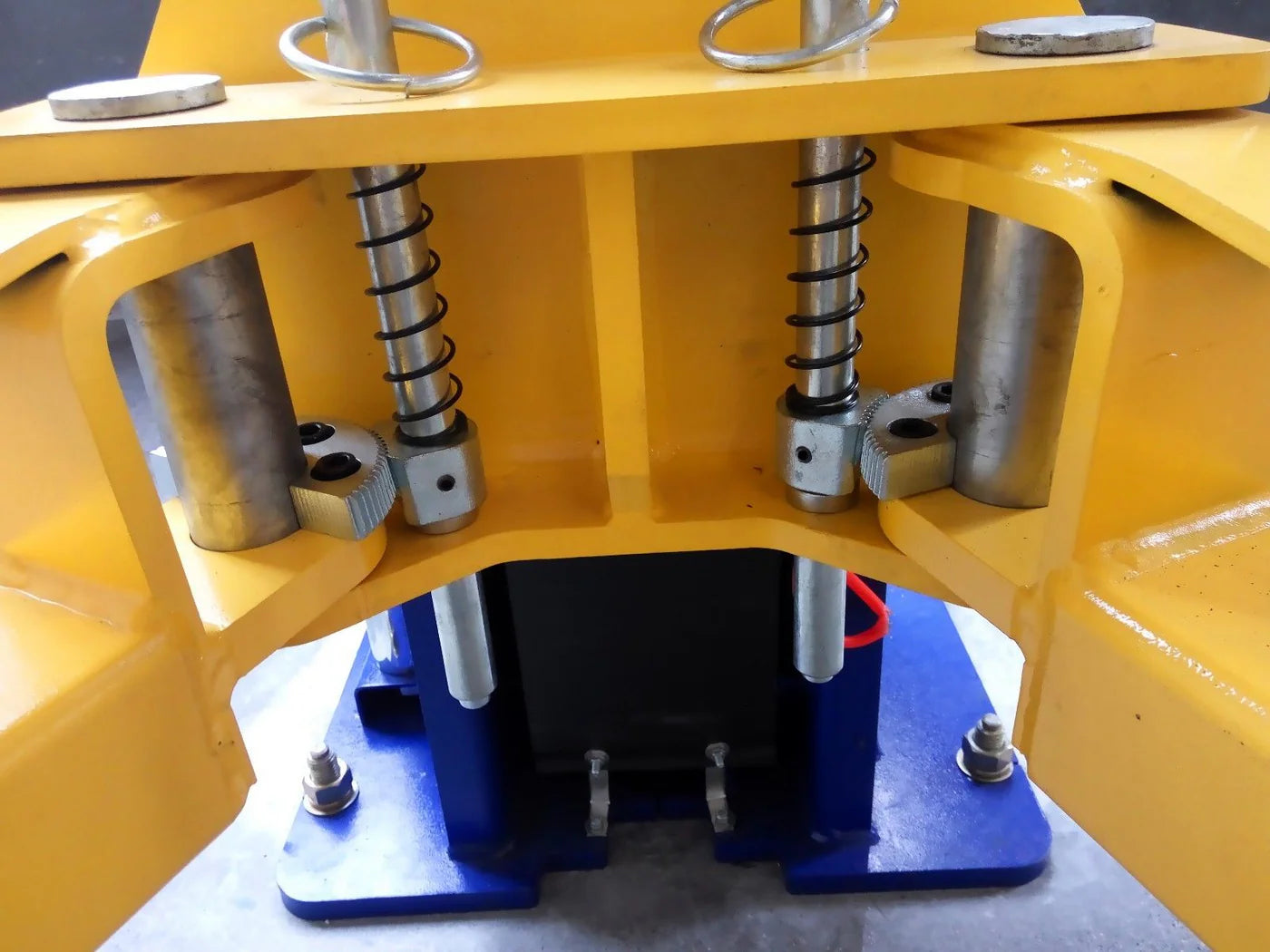

• Double-Point Safety Lock Release – Enhanced operator safety
• CE Certified Structure & Hydraulic System
• Industry-Leading 3-Year Warranty ($499 value)

🛡️ Safety & Testing

• Third-party tested at 115% dynamic load
• Third-party tested at 150% static load

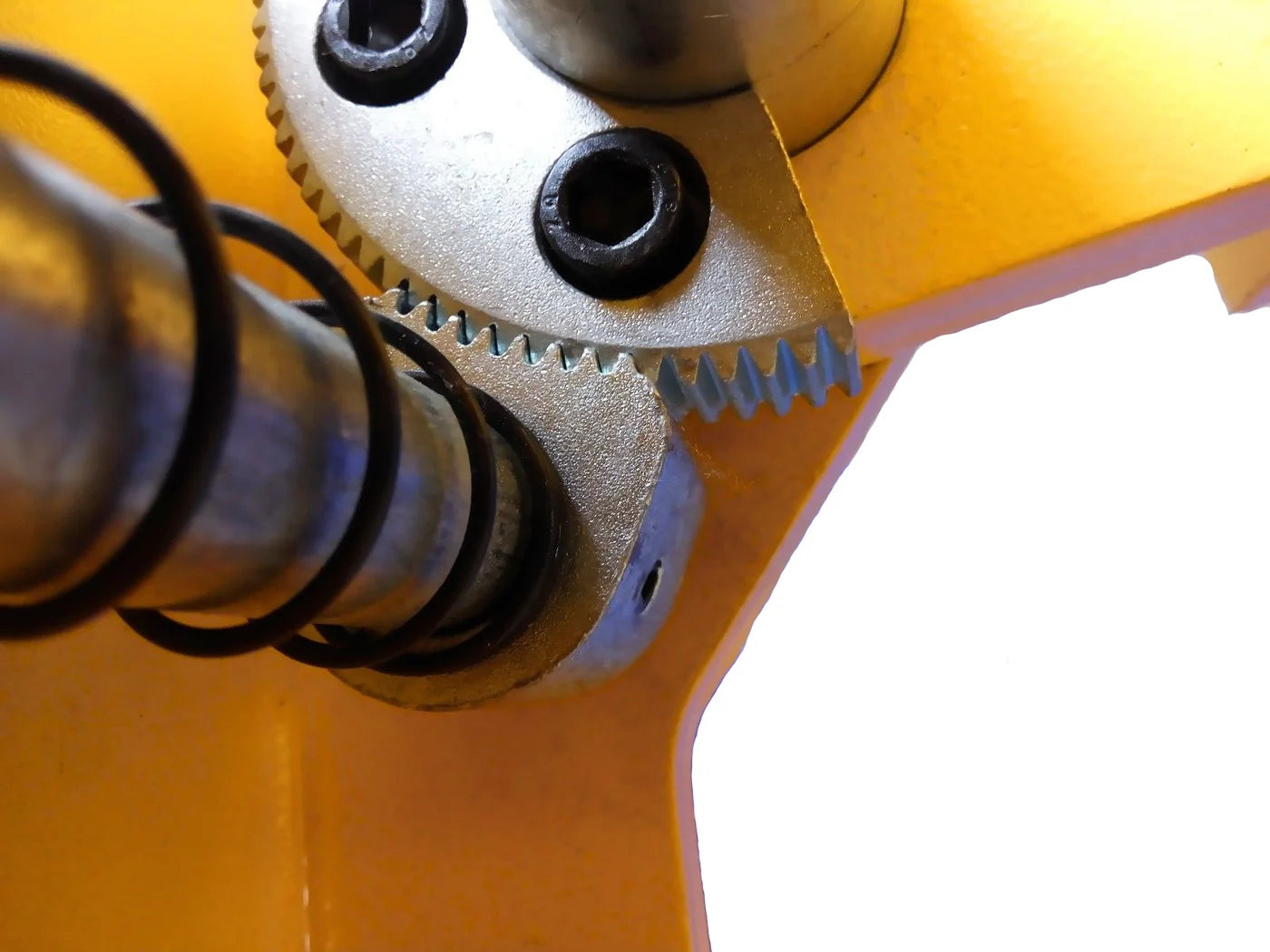

• Automatic arm lock restraints
• Built-in relief valve to prevent overloading
• Up-limit switch to protect hydraulic cylinders
• Door guard protection rubber

⚙️ Technical Specifications

• Model: HW-10KOH-A
• Style: Overhead 2-Post Lift
• Lifting Capacity: 10,000 LB
• Overall Height: 143 3/16"

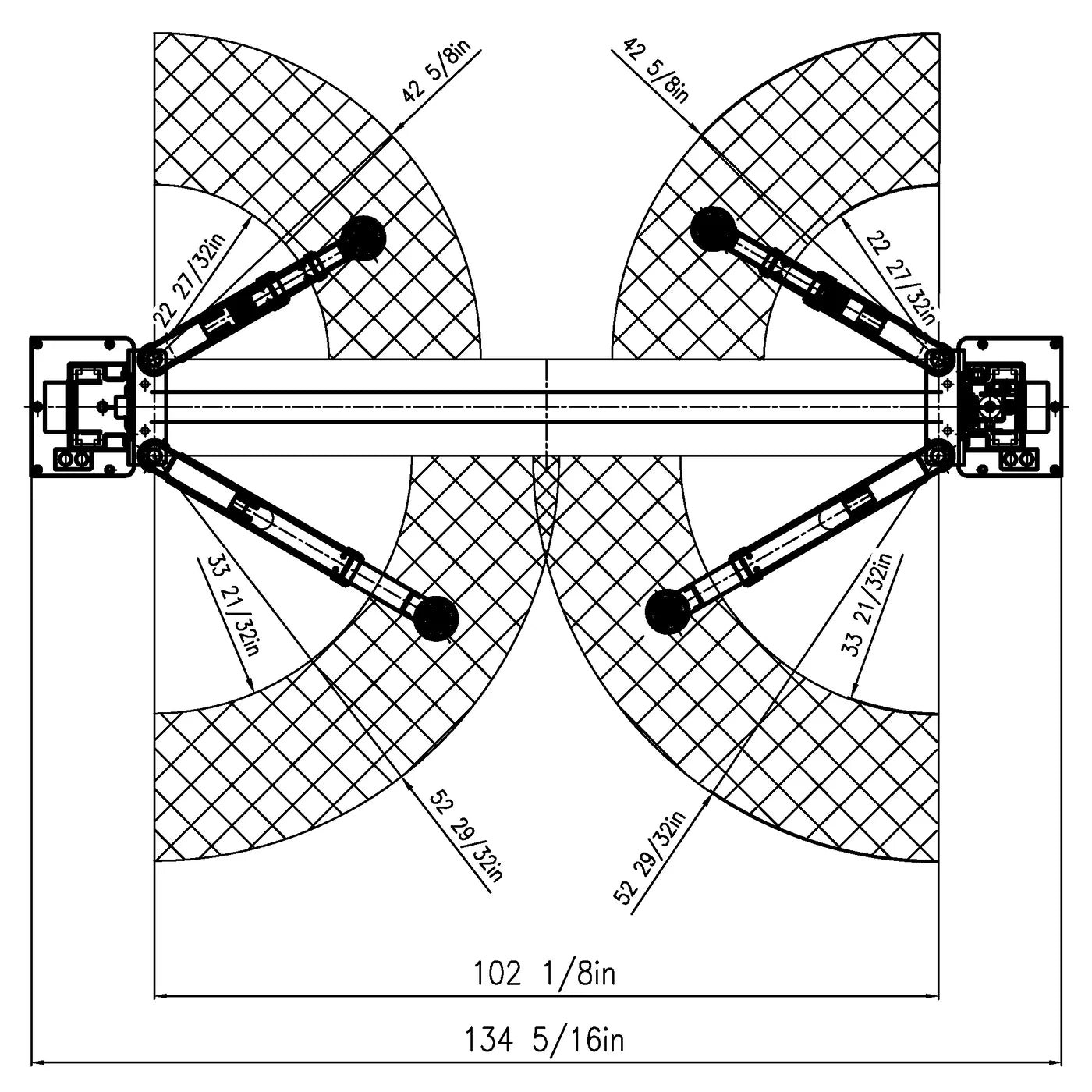

• Overall Width: 134 5/16"
• Max Lift Height: 81" (with truck adapters)
• Drive-Through Width: 100"
• Motor: 220V Single Phase, 3HP (20A breaker recommended)
• Time to Full Rise: Approx. 50 seconds
• Hydraulic Oil Required: 3–5 gallons AW32 or AW46 (not included)

🧱 Heavy-Duty Construction

• Q355 (ASTM A572) steel – stronger than standard Q235 steel
• 5/8" thick base plate for superior stability
• Heavy-duty 3/8" synchronization cables with 5" pulleys
• Ultra-high molecular self-lubricating nylon sliders for smooth operation
• Durable powder-coated finish

📦 What’s Included

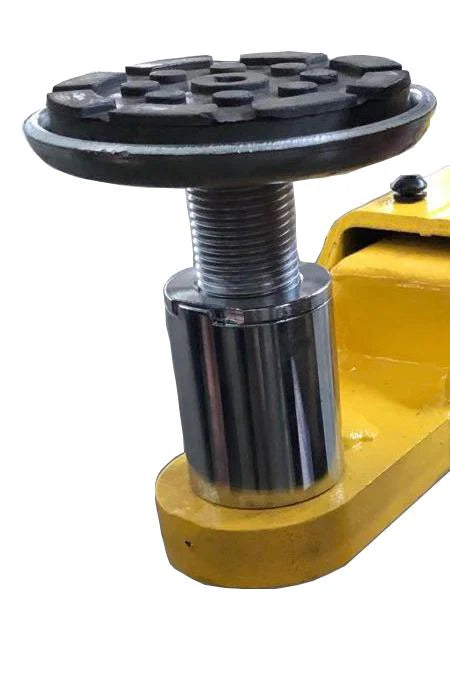

• 4 × Adjustable screw pads
• 4 × 4" tall truck adapters
• 10 × Anchor bolts & 10 shims

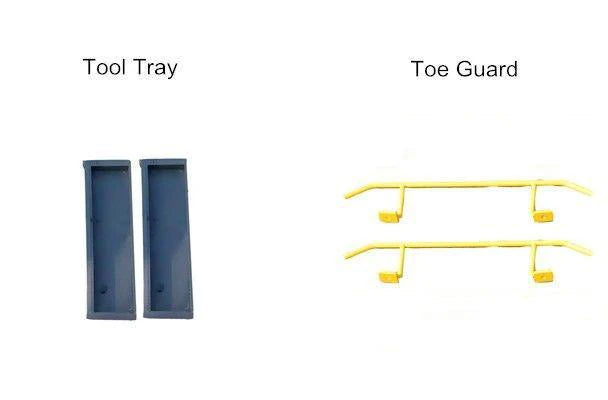

• 2 × Tool trays
• 2 × Toe guards

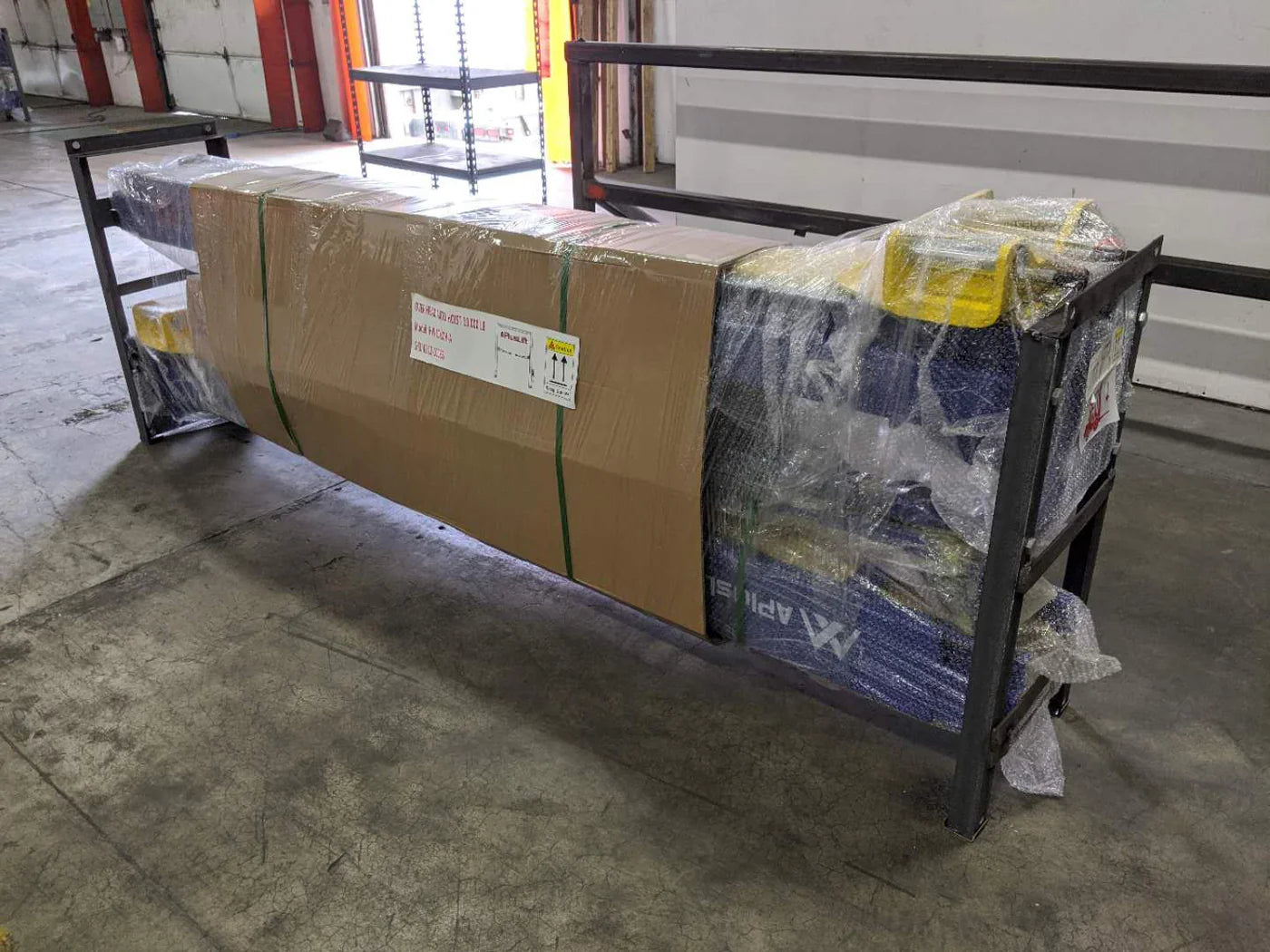

🚚 Shipping & Installation

Free shipping to the lower 48 states. A forklift or similar equipment is required on-site (no liftgate service).

Concrete requirement: 6" thick, 3500 PSI reinforced concrete (4" acceptable for vehicles under 9,000 LB).

⭐ Why Choose This Lift?

The APlusLift HW-10KOH-A offers professional-grade performance, strict safety standards, long-term parts availability, and exceptional value — making it one of the most reliable overhead 2-post car lifts in its class.
