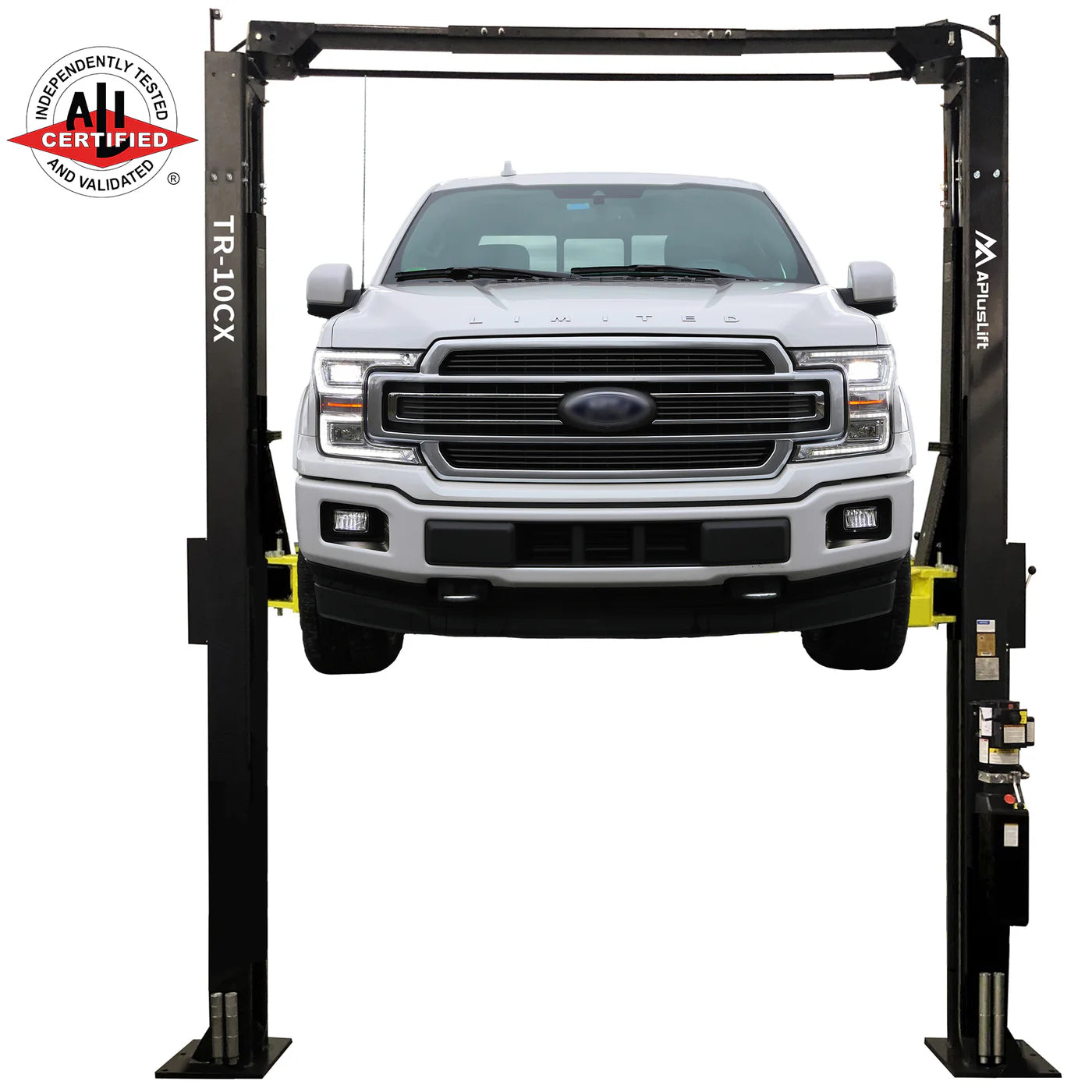

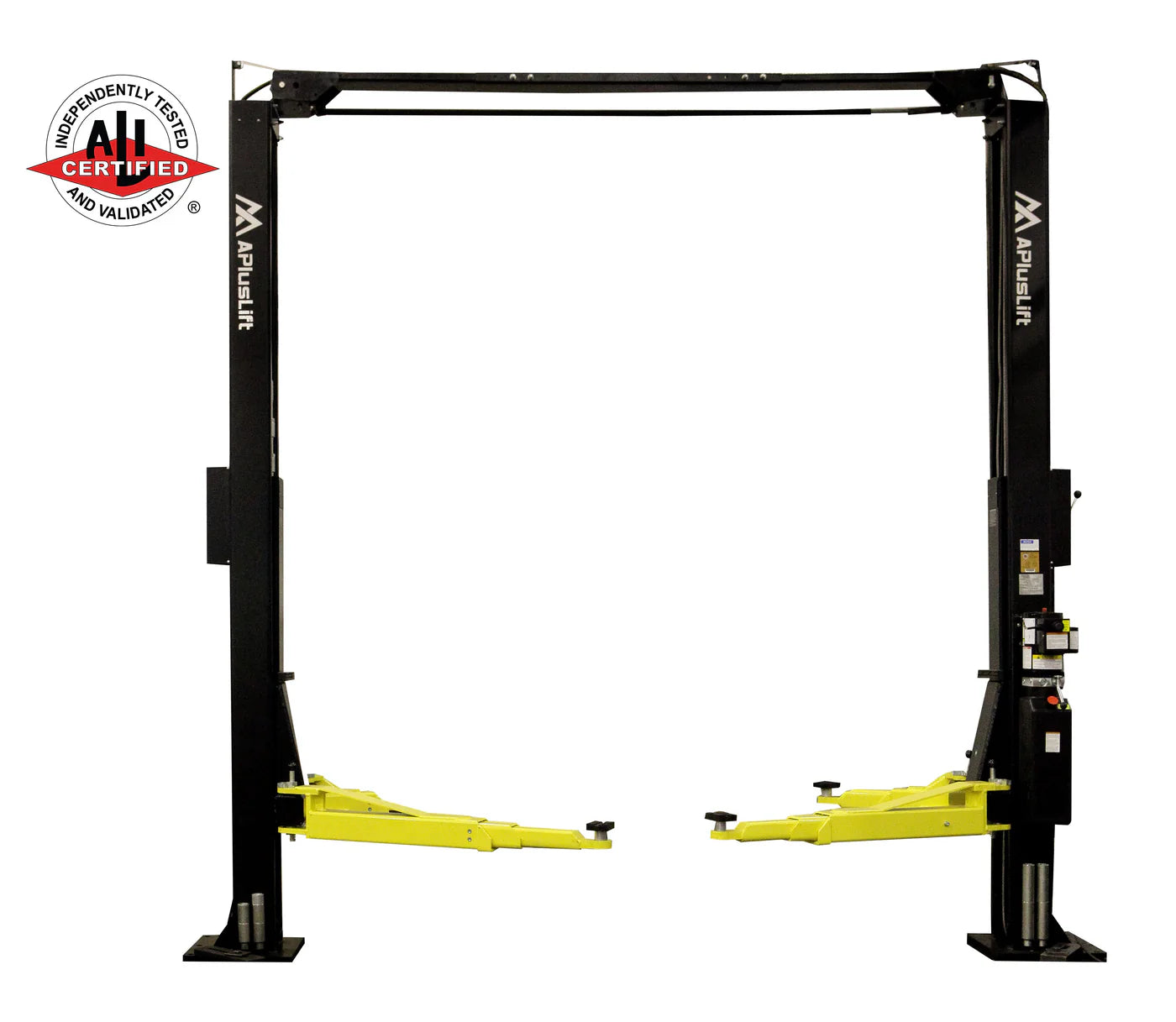

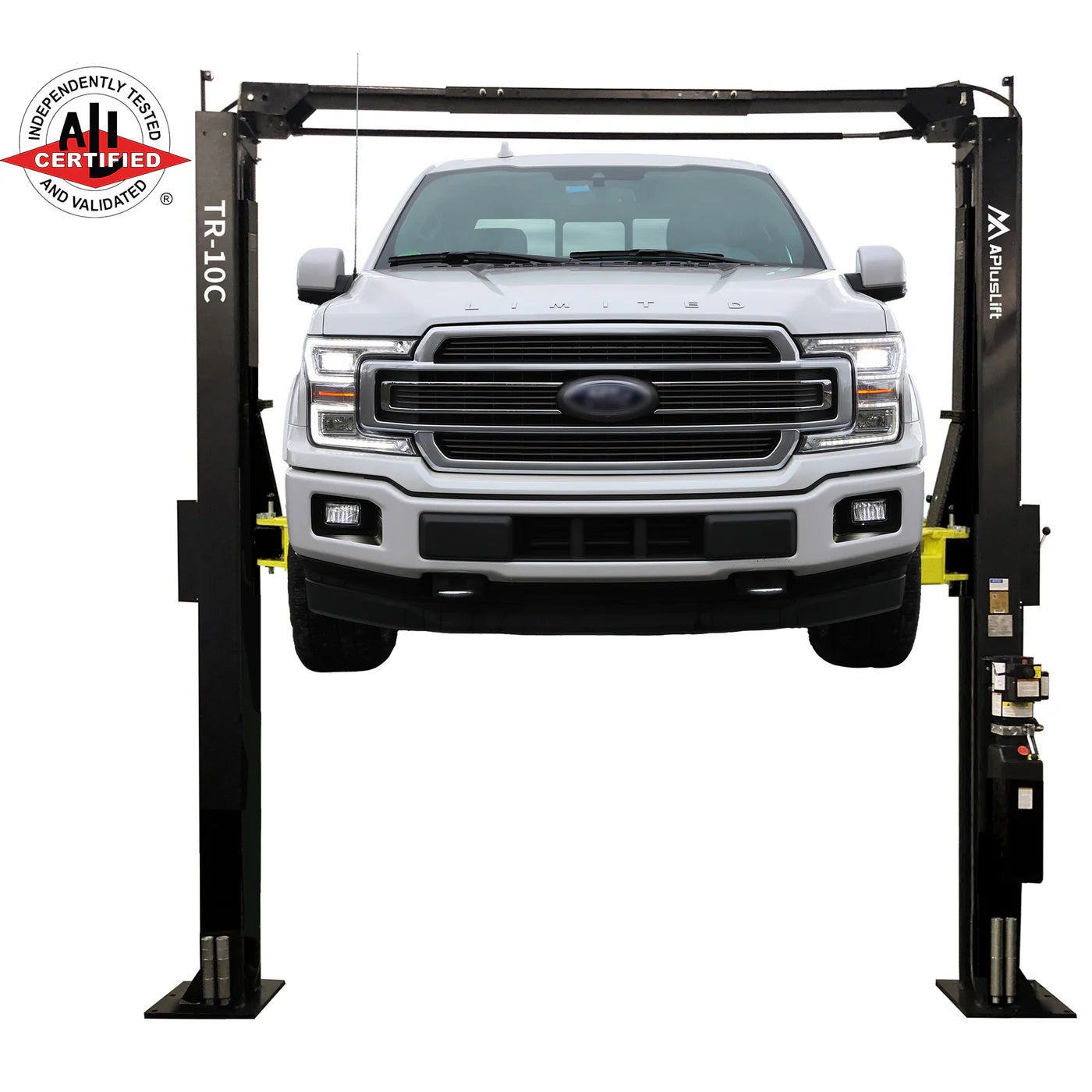

ALI Certified 10,000LB Overhead 2-Post Car Lift – Professional Grade

The Falcon TR-10C / TR-10CX is a heavy-duty, professional-grade 10,000LB overhead 2-post car lift designed for commercial workshops and serious automotive professionals who demand maximum safety, strength, and certification. This lift proudly carries the prestigious ALI Gold Label Certification, confirming compliance with the toughest industry standards and meeting all insurance requirements.

Featuring a direct drive hydraulic system, oversized carriages, and a flawless manual single-point safety lock release, the Falcon TR-10C delivers smooth lifting performance, precise control, and long-term reliability for daily professional use.

✅ Key Features & Benefits

• 10,000 LB Lifting Capacity – Ideal for cars, SUVs, and light-duty trucks
• ALI Gold Label Certified – Tested, approved, and insurance-compliant
• Overhead Design – Clean floor with no base plate obstruction

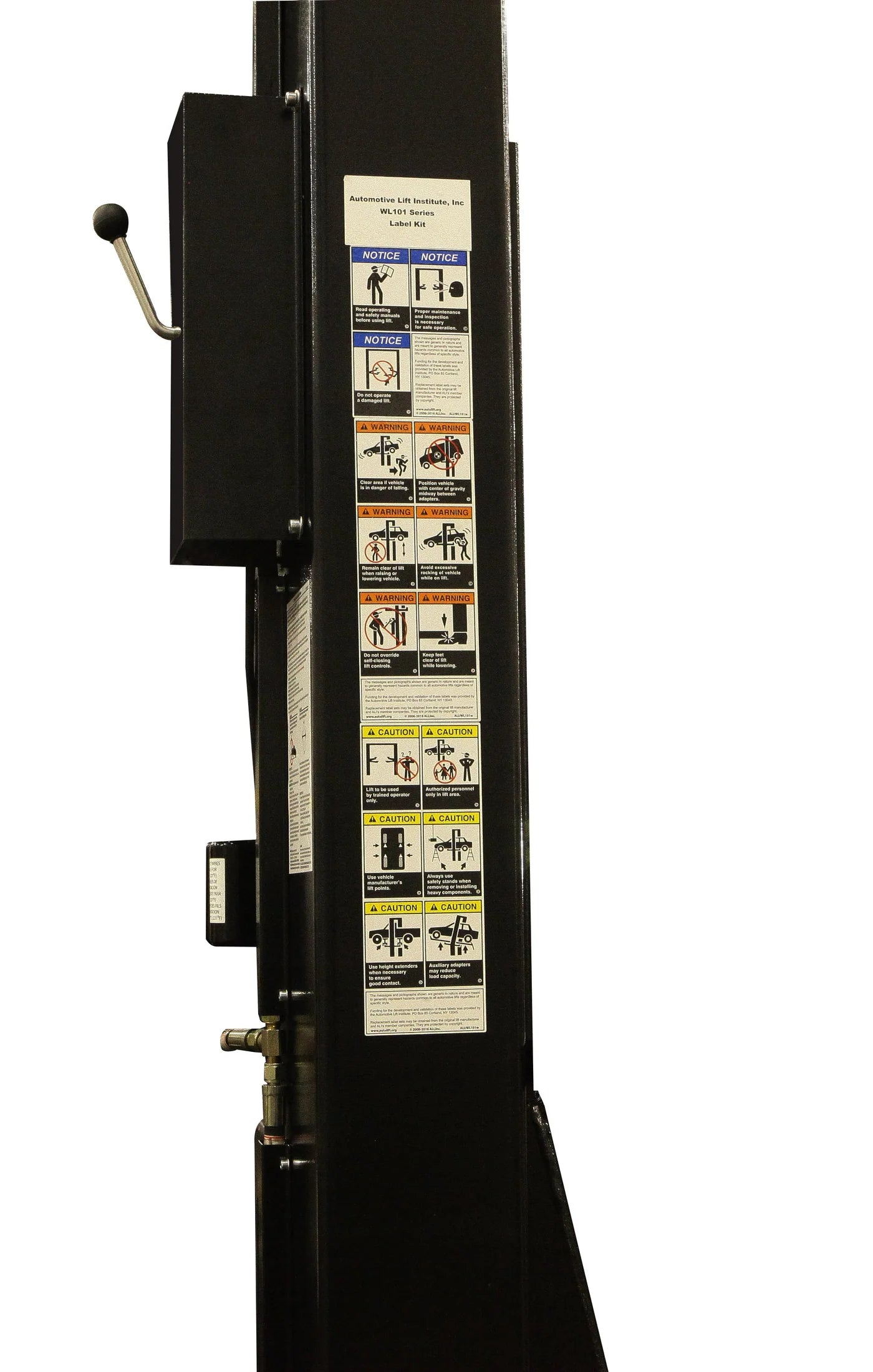

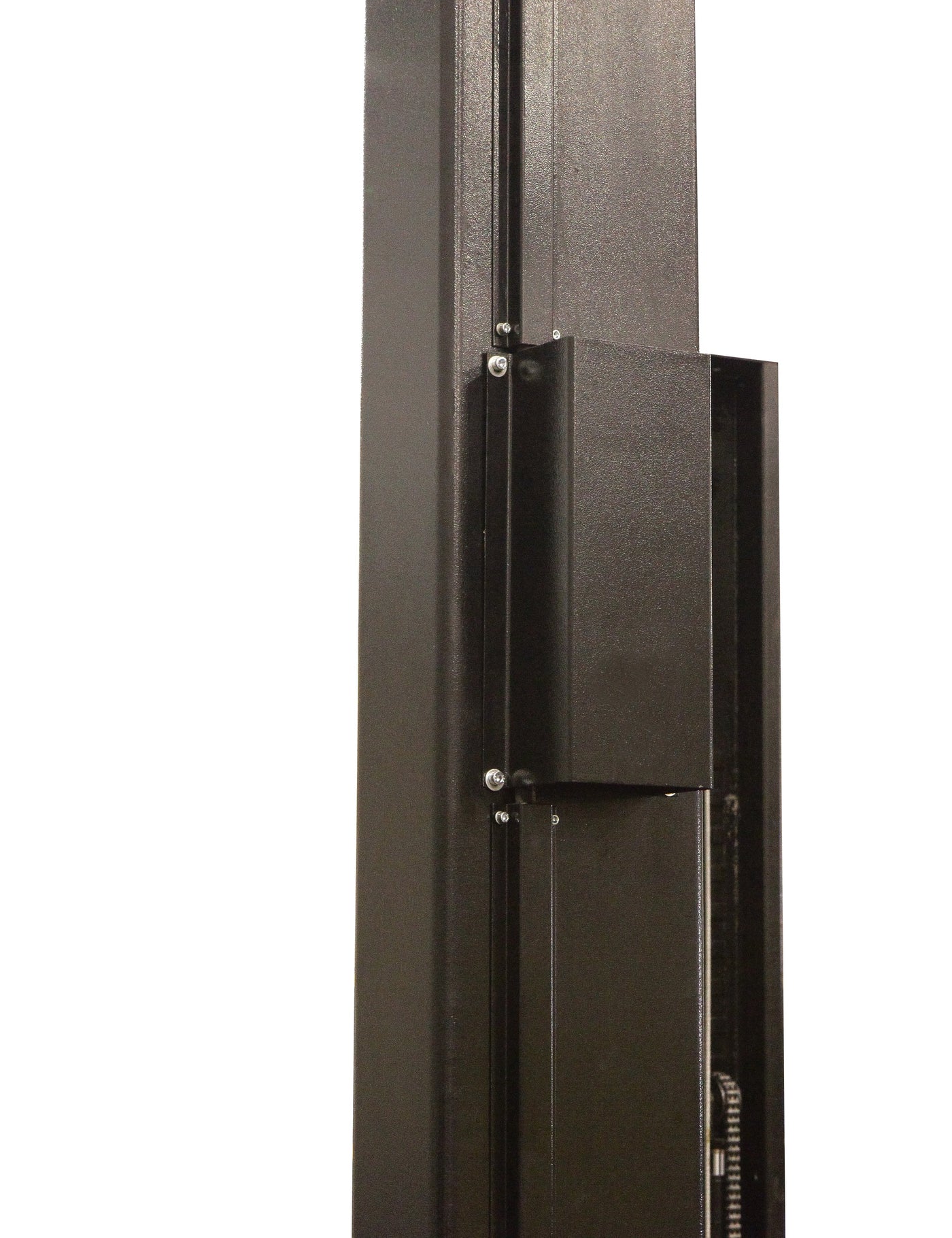

• Single-Point Safety Lock Release – Simple, fast, and secure operation
• Dual Direct Drive Hydraulic Cylinders – Smooth and powerful lifting

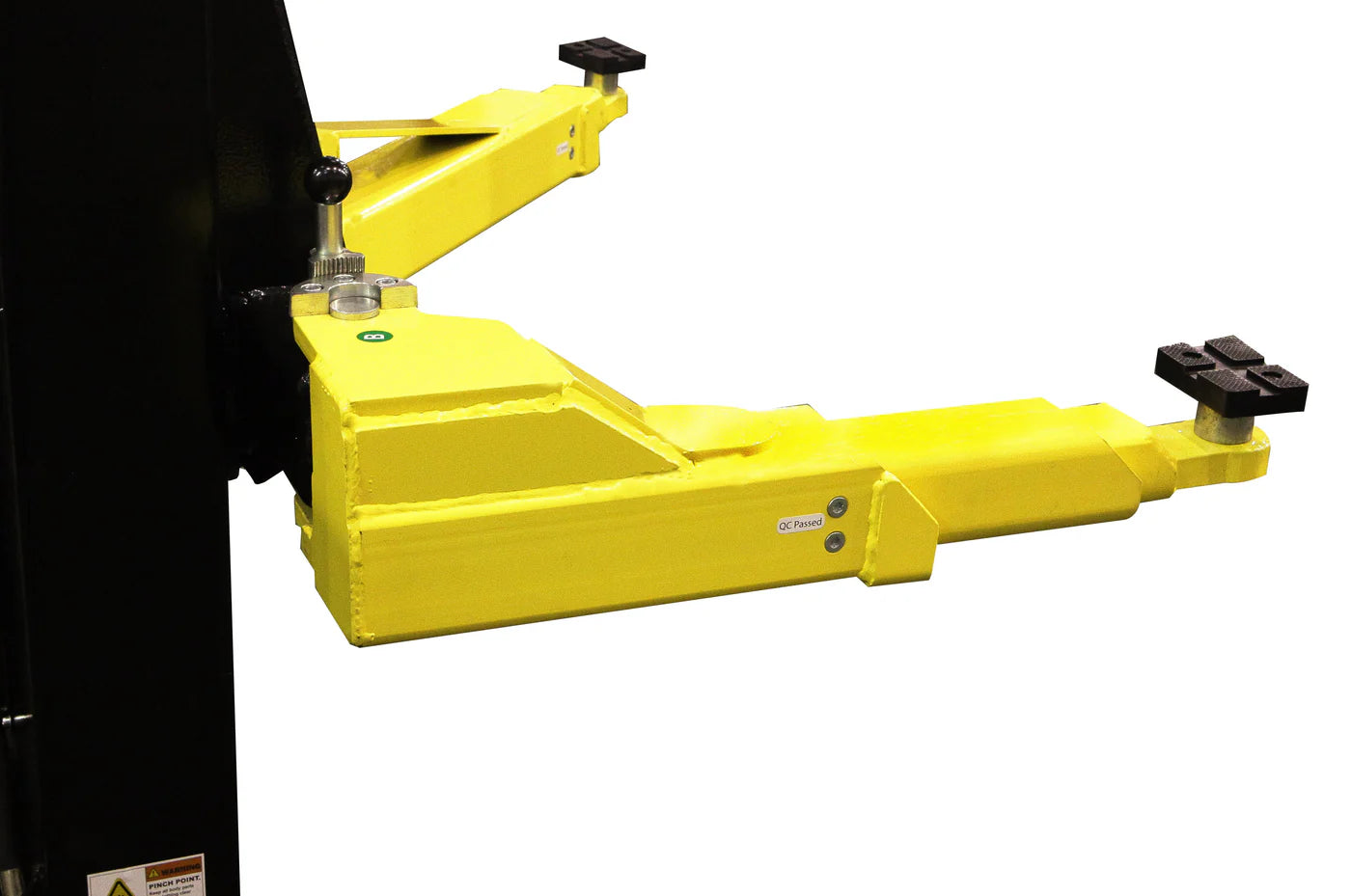

• Triple Telescoping Arm Design – Maximum vehicle positioning flexibility
• Three Drive-Through Width Options: 88 1/8", 94 1/16", and 100"
• Industry-Leading 3-Year Warranty – Full parts coverage ($499 value)

🛡️ Safety, Certification & Testing

• ALI Certified under ANSI/ALI/ETL standards
• Automatic arm lock restraints for secure vehicle positioning
• Built-in relief valve to prevent system overloading
• Up-limit switch to protect hydraulic cylinders
• Door guard protection rubber
• Manual lowering system with controlled descent

⚙️ Technical Specifications

• Models: TR-10C / TR-10CX
• Lifting Capacity: 10,000 LB
• Overall Height: 143 3/4" (TR-10C) / 166" (TR-10CX)
• Overall Width Options: 140 7/16" (narrow), 146 3/8" (medium), 152 1/4" (wide)
• Maximum Lift Height: 78" (with truck adapters)
• Minimum Pad Height: 4"

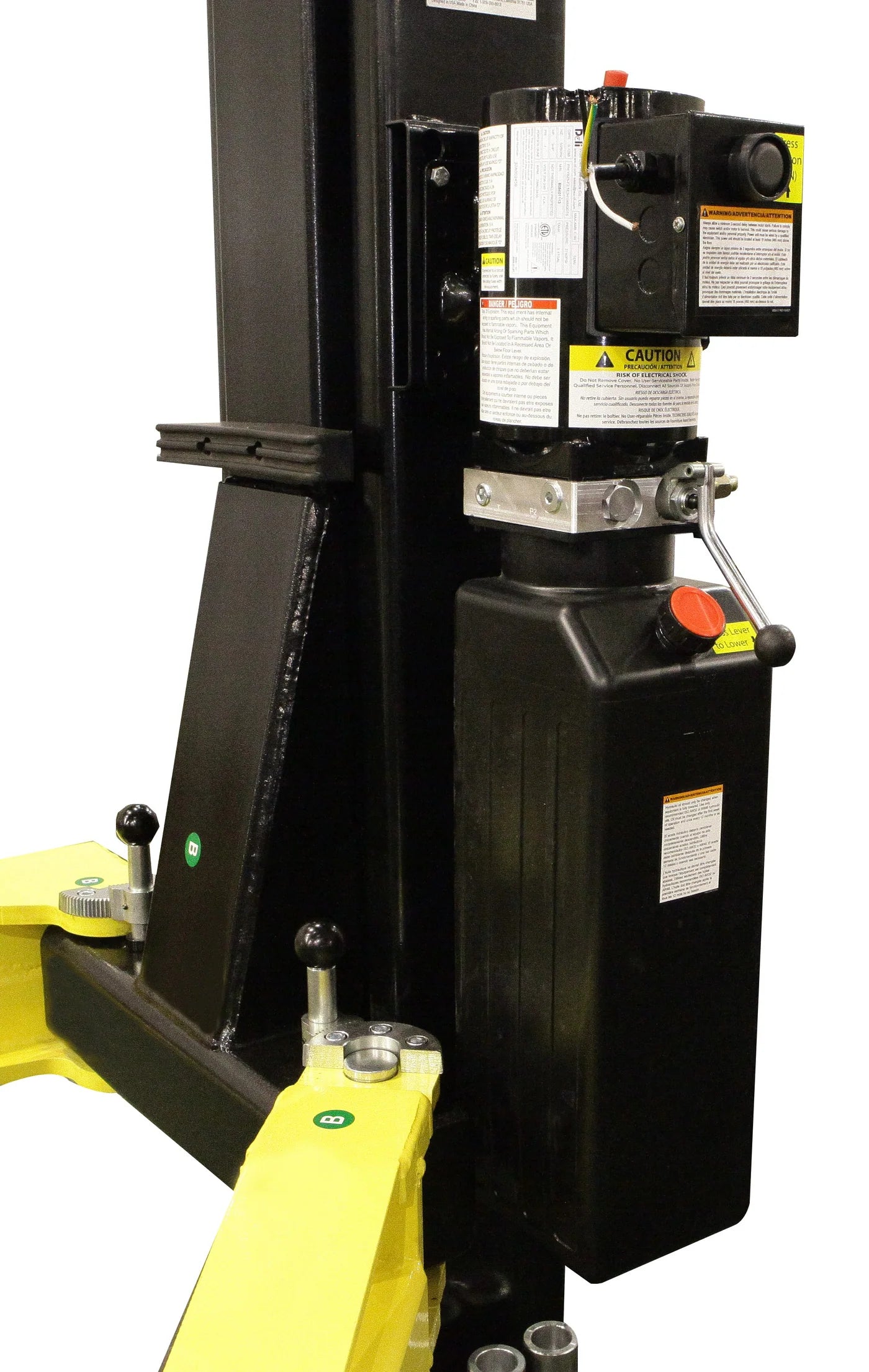

• Motor: 220V Single Phase, 3HP (20A breaker recommended)
• Time to Full Rise: Approx. 50 seconds
• Hydraulic Oil Required: 3–5 gallons AW32 or AW46 (not included)

🧱 Heavy-Duty Construction

• 1/4" thick column, carriage, and arm steel for maximum rigidity

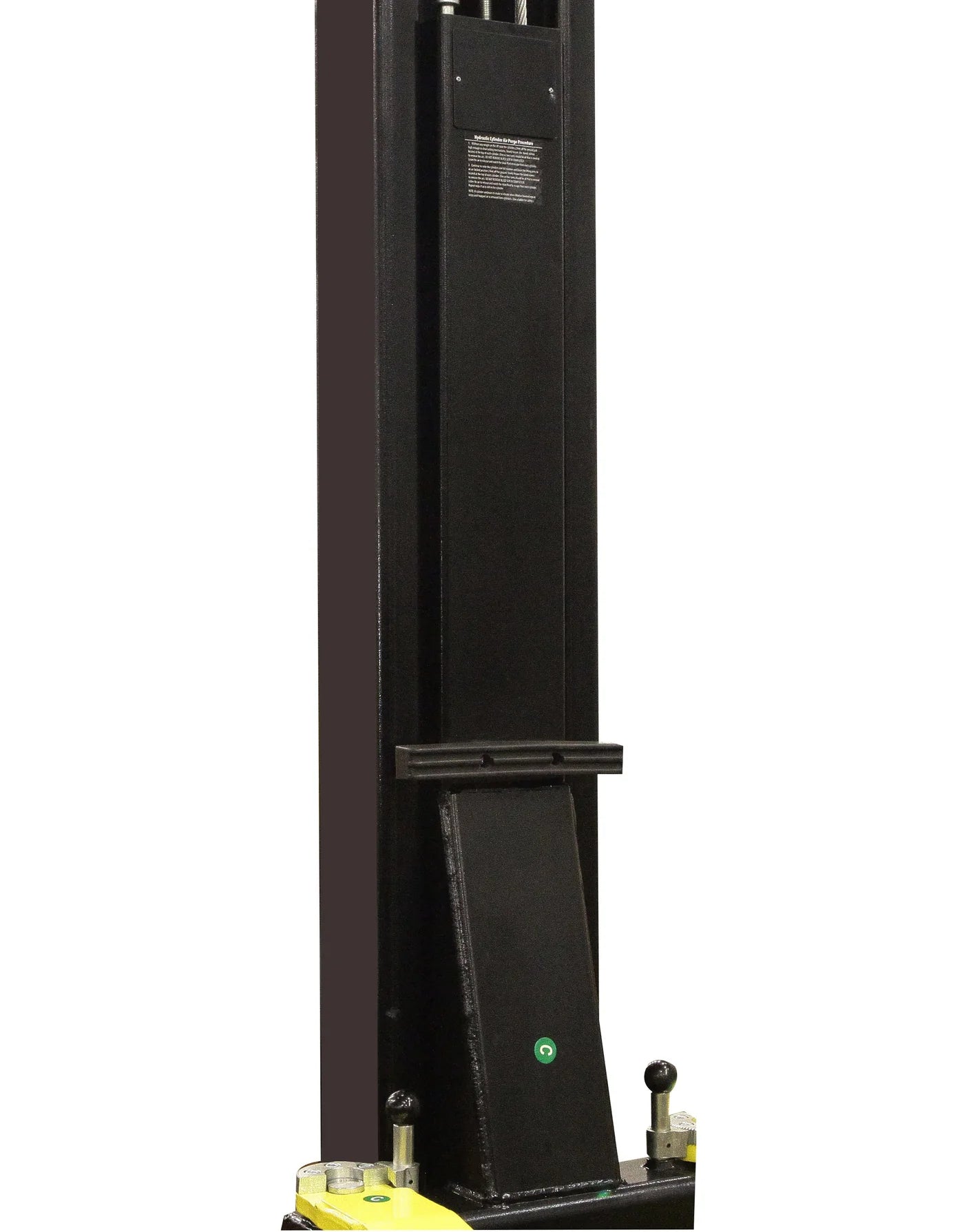

• Oversized 57" tall carriages for improved stability
• Reinforced 13/16" base plates for superior anchoring strength

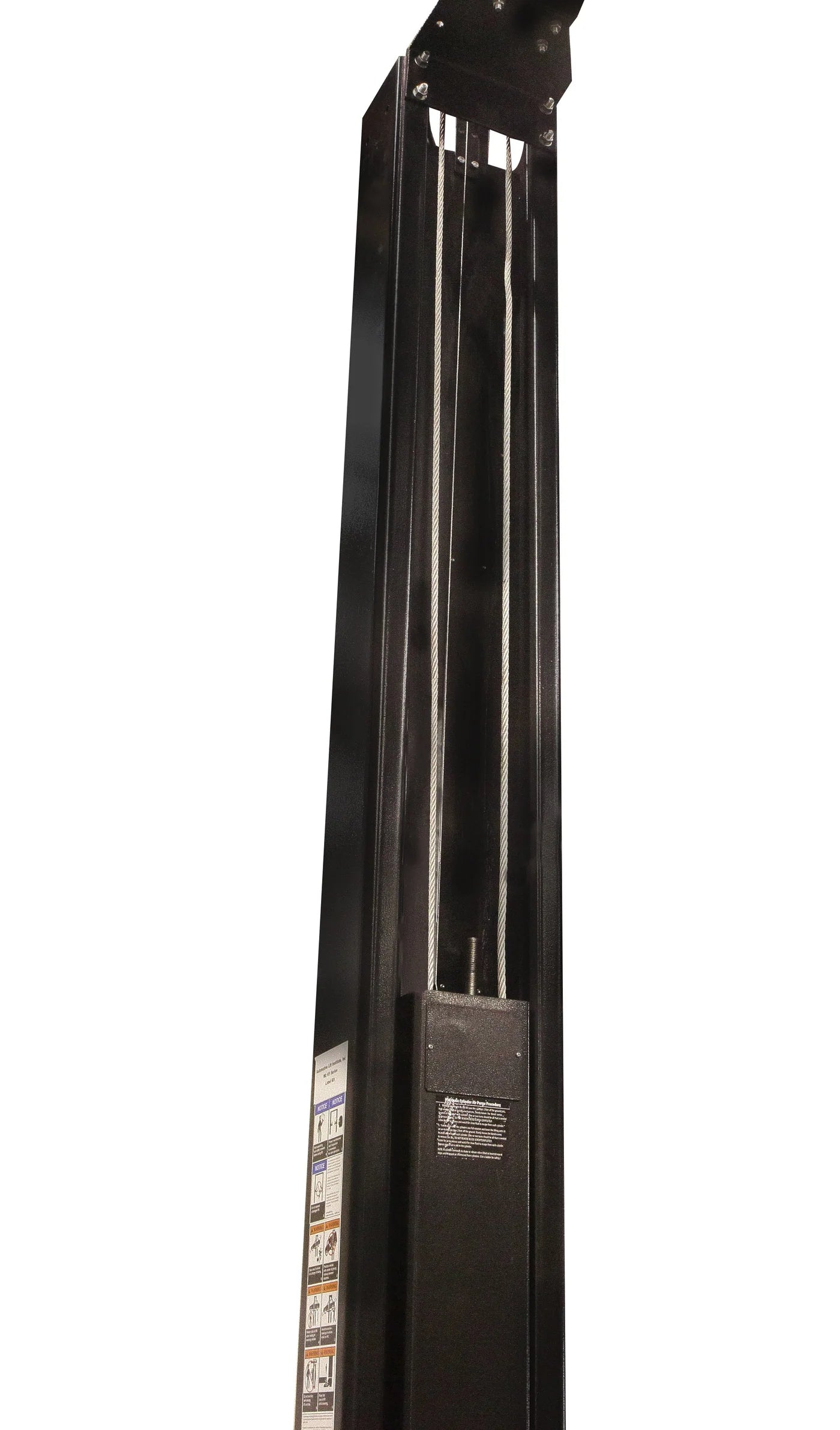

• Heavy-duty 3/8" synchronization cables with 5" pulleys
• Ultra-high molecular self-lubricating nylon sliders for smooth operation
• All robot-welded structure with durable powder-coated finish

📦 What’s Included

• Three sets of truck adapters: 1 1/2", 3", and 6"
• Automatic arm lock restraints
• Single-point manual lock release system
• All required lifting components and hardware

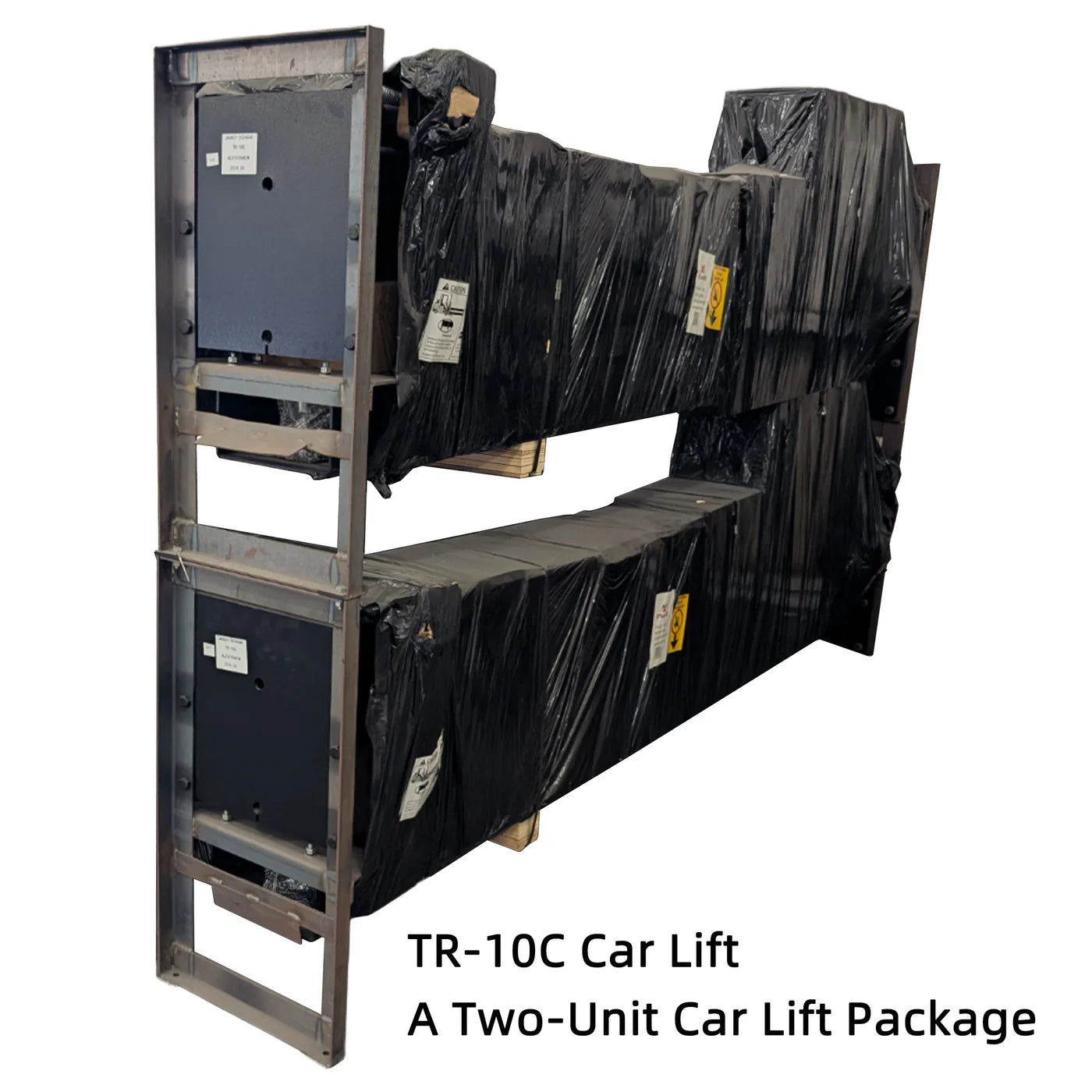

🚚 Shipping & Installation Requirements

Free shipping to the lower 48 states. Forklift or similar equipment is required on-site (no liftgate service).

Concrete requirement: Minimum 6" thick, 3500 PSI reinforced concrete. (4" thick acceptable for vehicles under 9,000 LB.)

⭐ Why Choose the Falcon TR-10C?

With ALI Gold Label Certification, direct drive hydraulic power, heavy-duty steel construction, and professional-level safety systems, the Falcon TR-10C is built for workshops that cannot compromise on quality, compliance, or long-term performance.
